RESEARCH OF COMPONENT COMPOSITION OF MINERALIZED BONE IMPLANTS BY RAMAN SPECTROSCOPY



Презентация

The results of Raman spectroscopy to evaluate alternative sources for donor bone implants using the "Lioplast" technology are presented. It is shown that Raman spectroscopy can be used to assess the component composition of the surface of bone implants during their treatment.

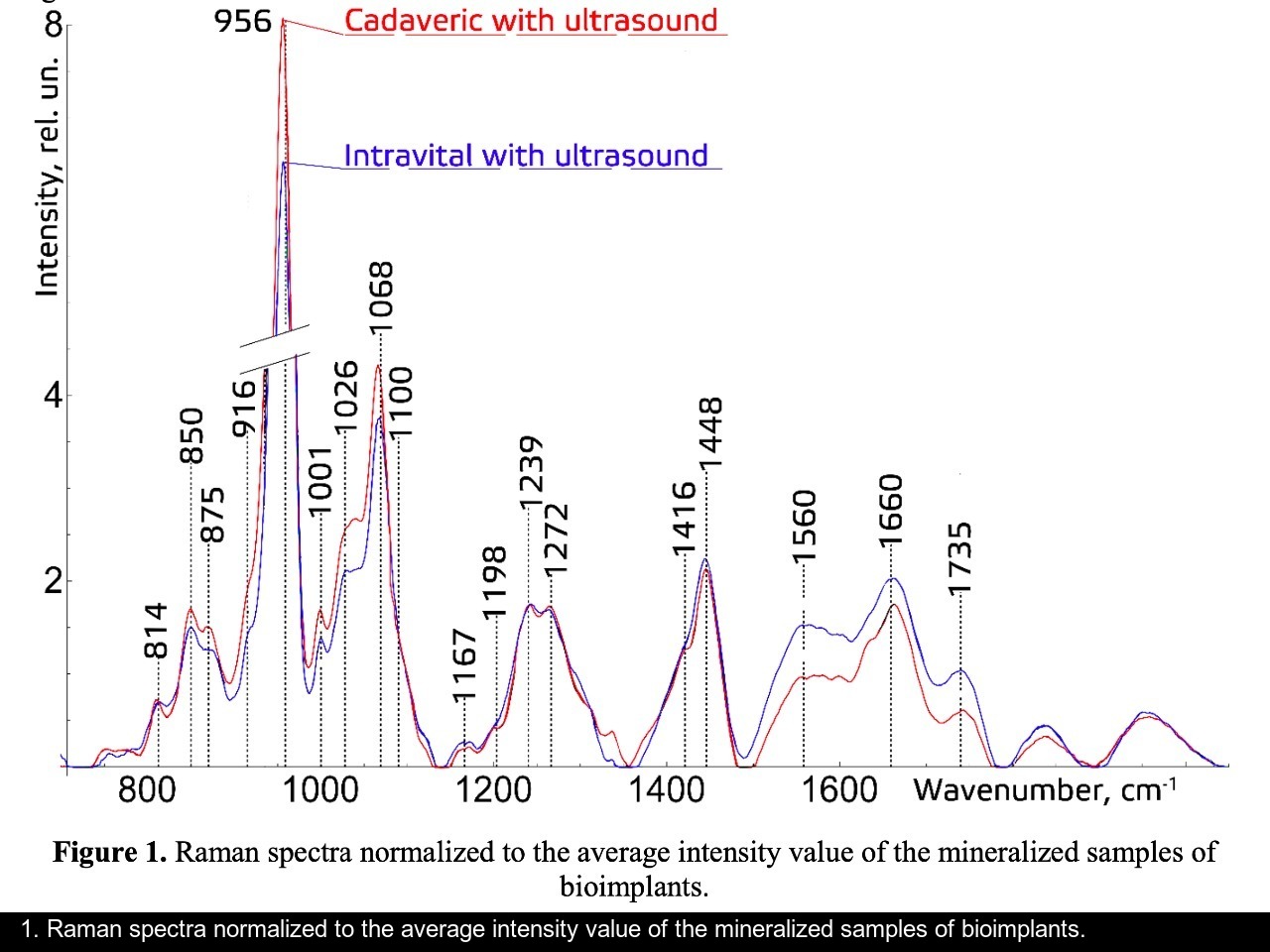

1. Raman spectra normalized to the average intensity value of the mineralized samples of bioimplants.

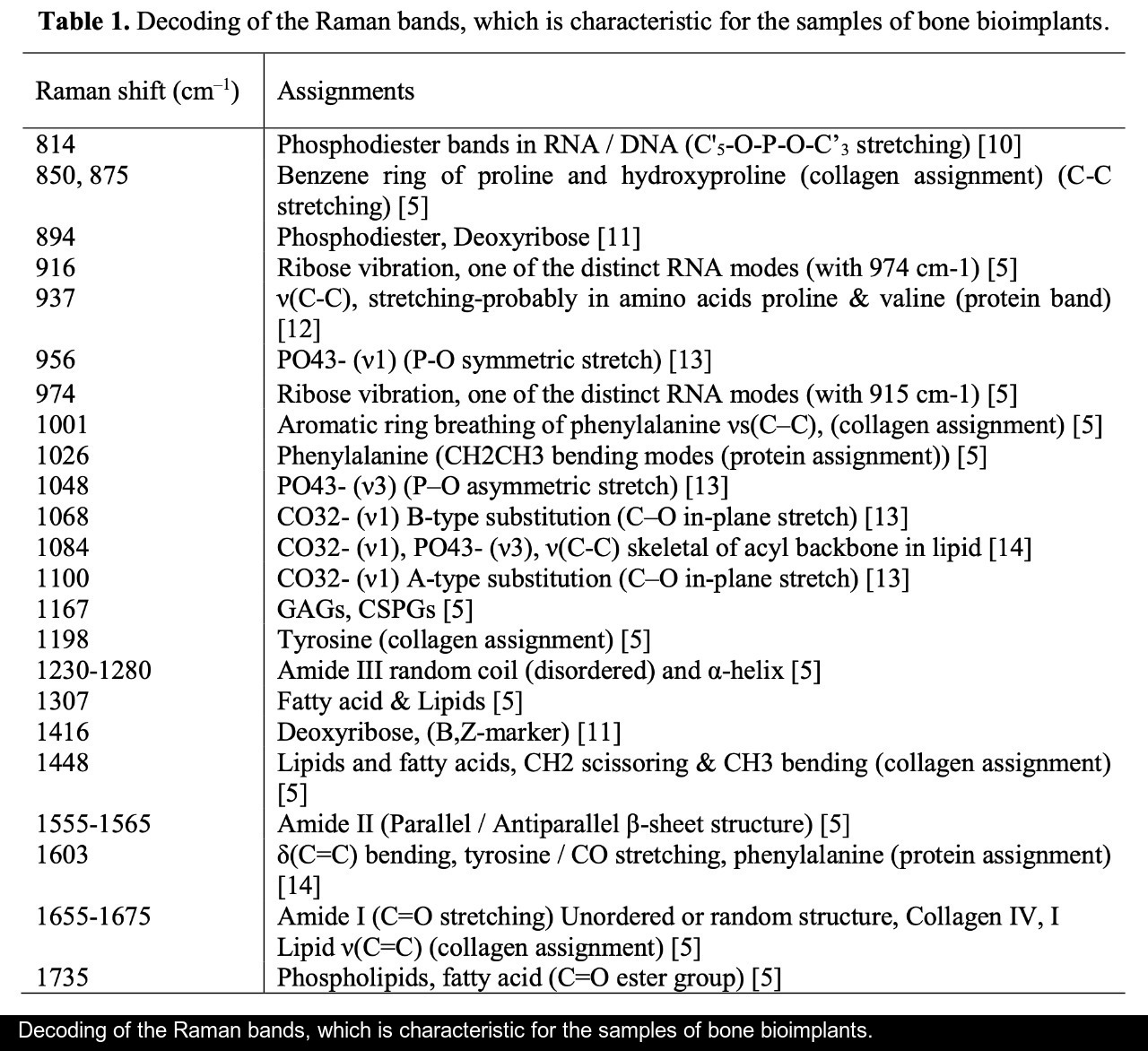

Decoding of the Raman bands, which is characteristic for the samples of bone bioimplants.
where Ii – intensity values of the spectral lines of the analyzed components.

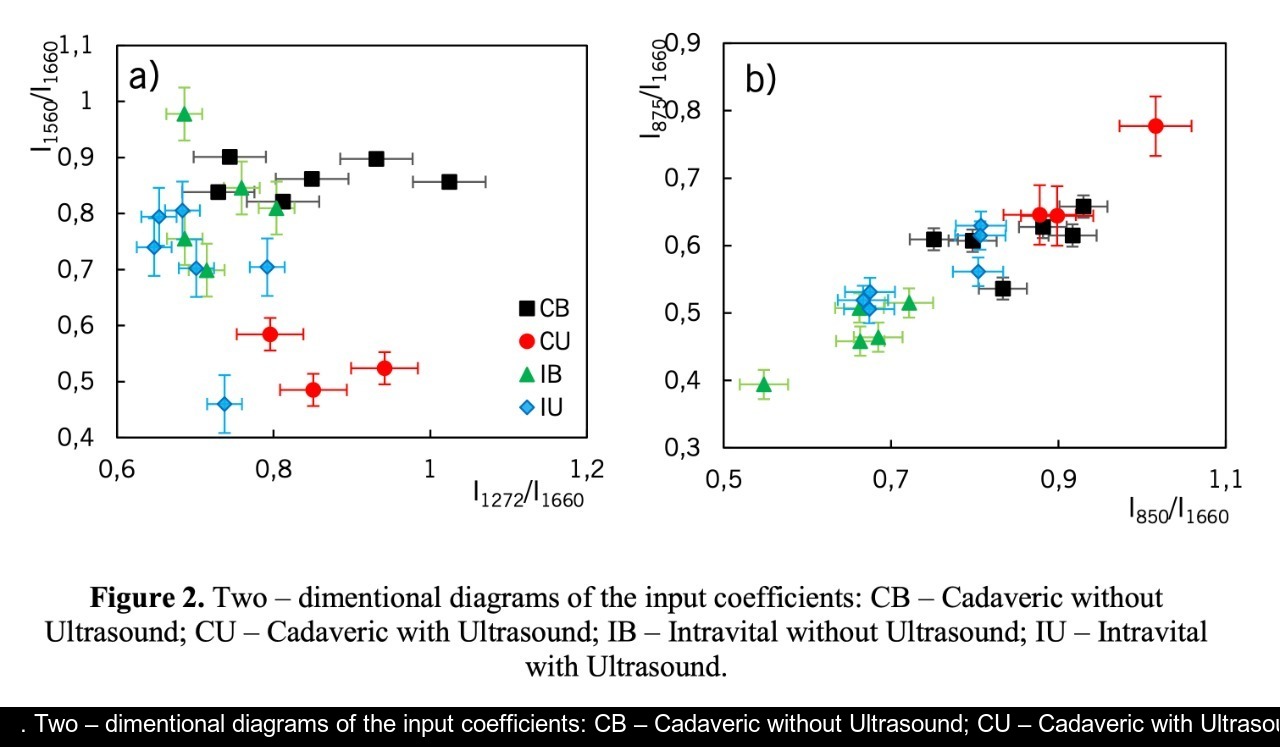

. Two – dimentional diagrams of the input coefficients: CB – Cadaveric without Ultrasound; CU – Cadaveric with Ultrasound; IB – Intravital without Ultrasound; IU – Intravital with Ultrasound.

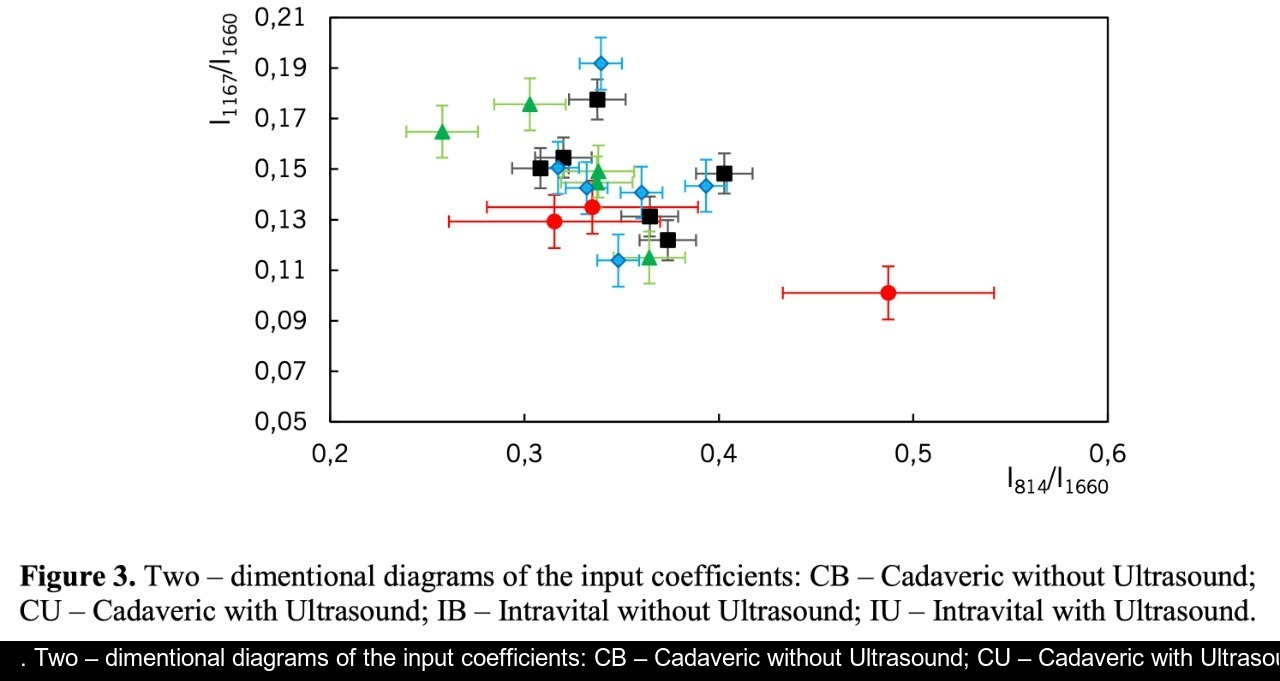

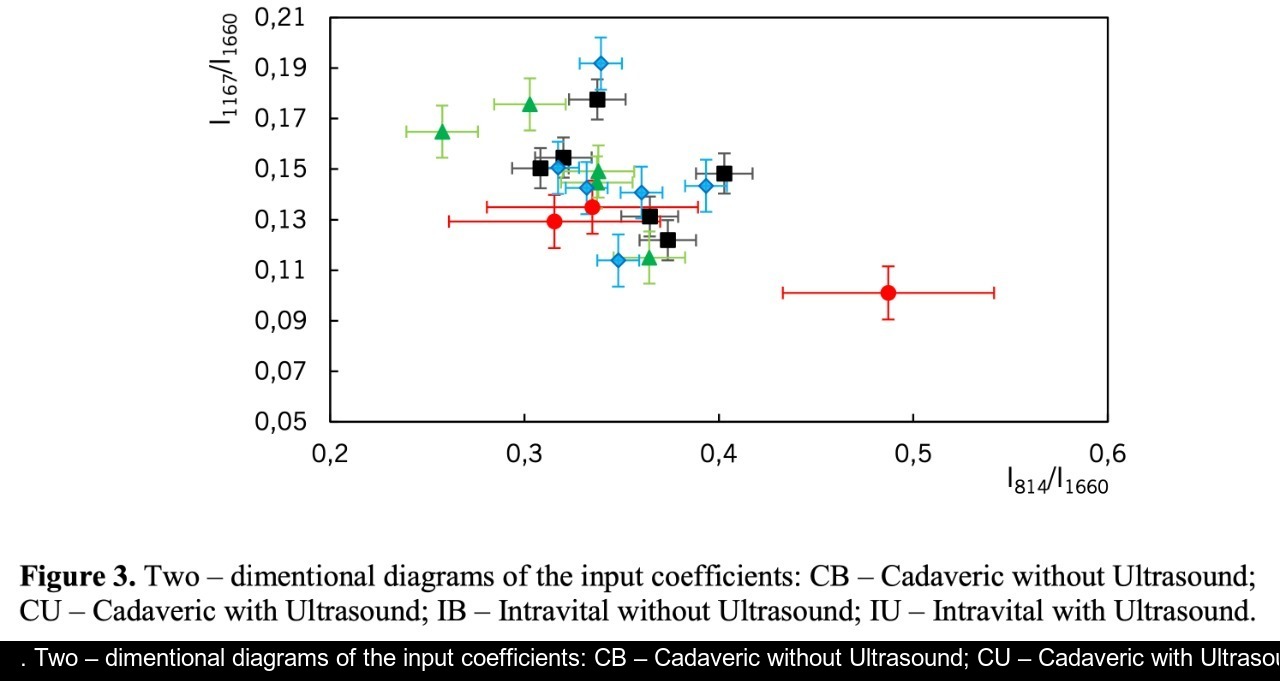

. Two – dimentional diagrams of the input coefficients: CB – Cadaveric without Ultrasound; CU – Cadaveric with Ultrasound; IB – Intravital without Ultrasound; IU – Intravital with Ultrasound.
