Raman spectroscopy method for the evaluation of bone bioimplants made using the "Lyoplast" technology from cadaveric and in vivo resected bone tissue

Статья

The results of application of the Raman spectroscopy method for estimating alternative sources for the production of bone spongy implants using the "Lioplast" technology, namely, the femoral head heads resected in the operation of hip replacement surgery, are presented. It is shown that Raman spectroscopy can be used to assess the component composition of the bone implants surface during their processing. Comparing different sources of sponge bone production before and after demineralization, no significant differences were found, but there are differences in the ratio of the Raman peaks intensities at wave numbers 1555 cm-1 and 1665 cm-1 corresponding to amide II and amide I, and also in the intensity of Raman peaks at the wave numbers 429 cm-1 (PO4 3- (ν2) (PO symmetric vibrational)), 1068 cm-1 (СO3 2- (ν1) B-type substitution (C-O planar valence)), 850 cm-1 (benzene ring proline), 1000 cm-1 , (aromatic phenylalanine ring).

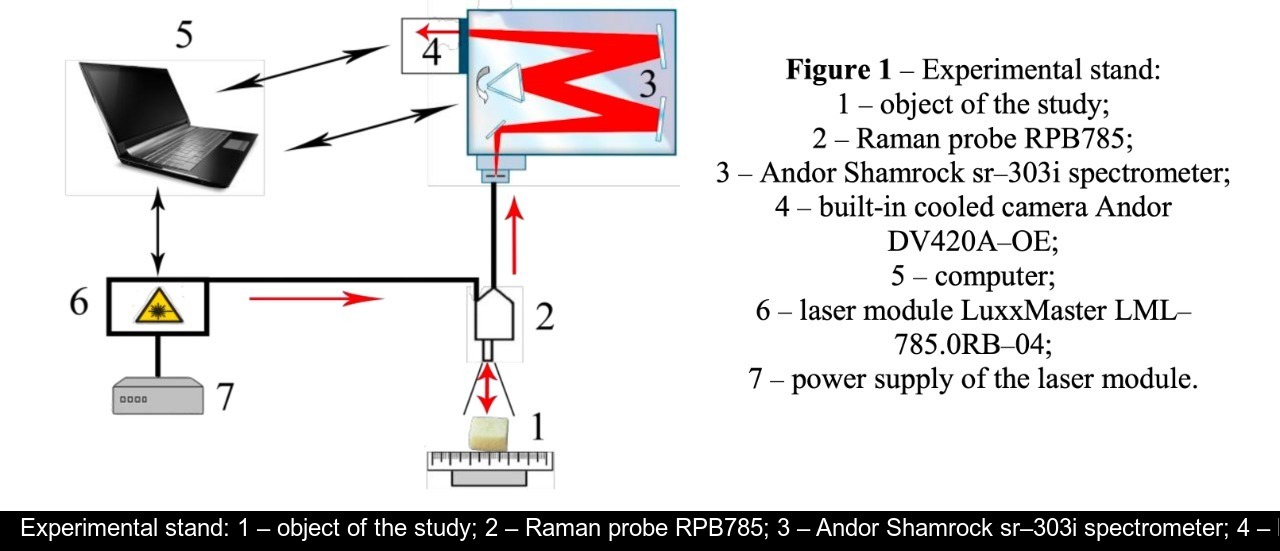

Experimental stand: 1 – object of the study; 2 – Raman probe RPB785; 3 – Andor Shamrock sr–303i spectrometer; 4 – built-in cooled camera Andor DV420A–OE; 5 – computer; 6 – laser module LuxxMaster LML– 785.0RB–04; 7 – power supply of the laser module

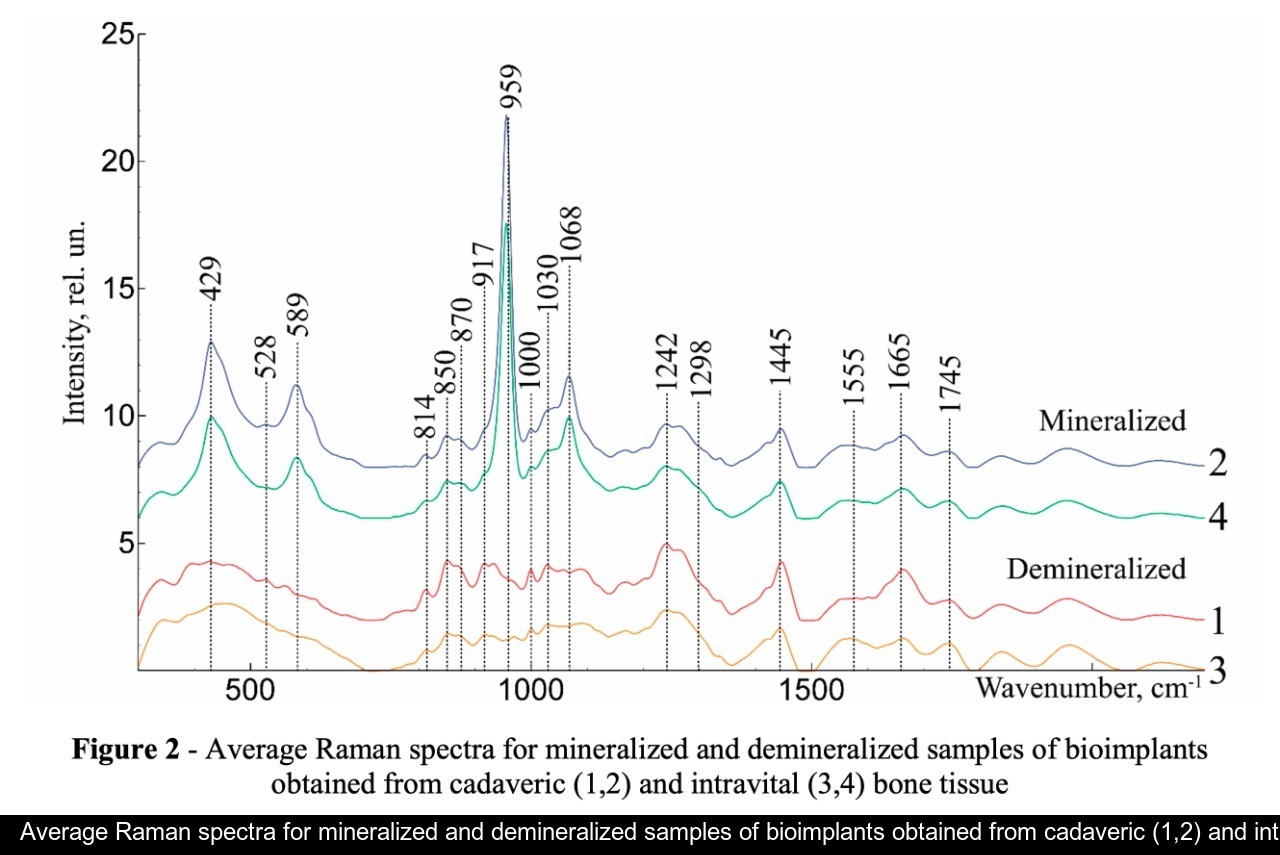

Average Raman spectra for mineralized and demineralized samples of bioimplants obtained from cadaveric (1,2) and intravital (3,4) bone tissue

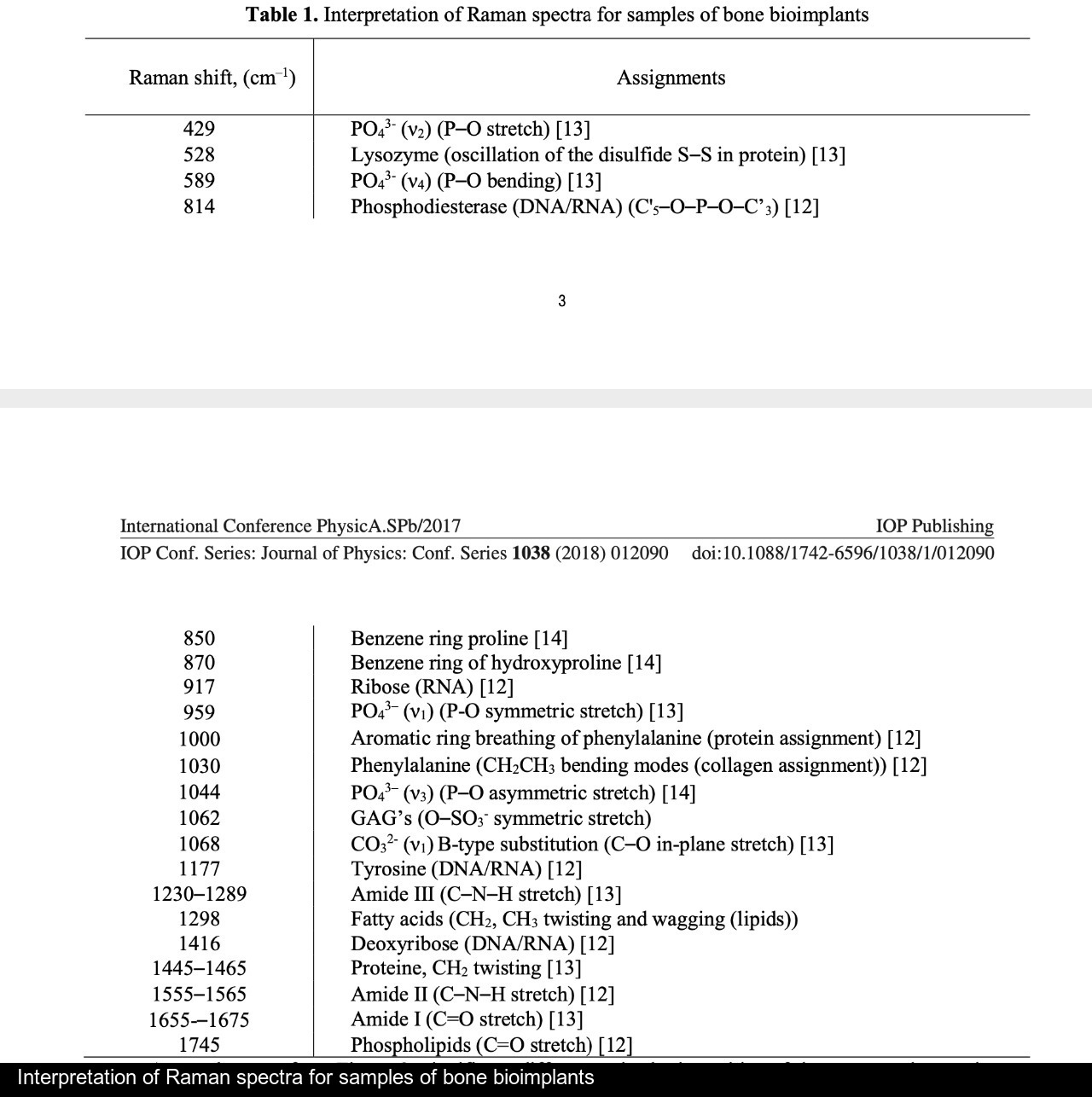

Interpretation of Raman spectra for samples of bone bioimplants
where Ii – the intensity values at the wave numbers of the analyzed components

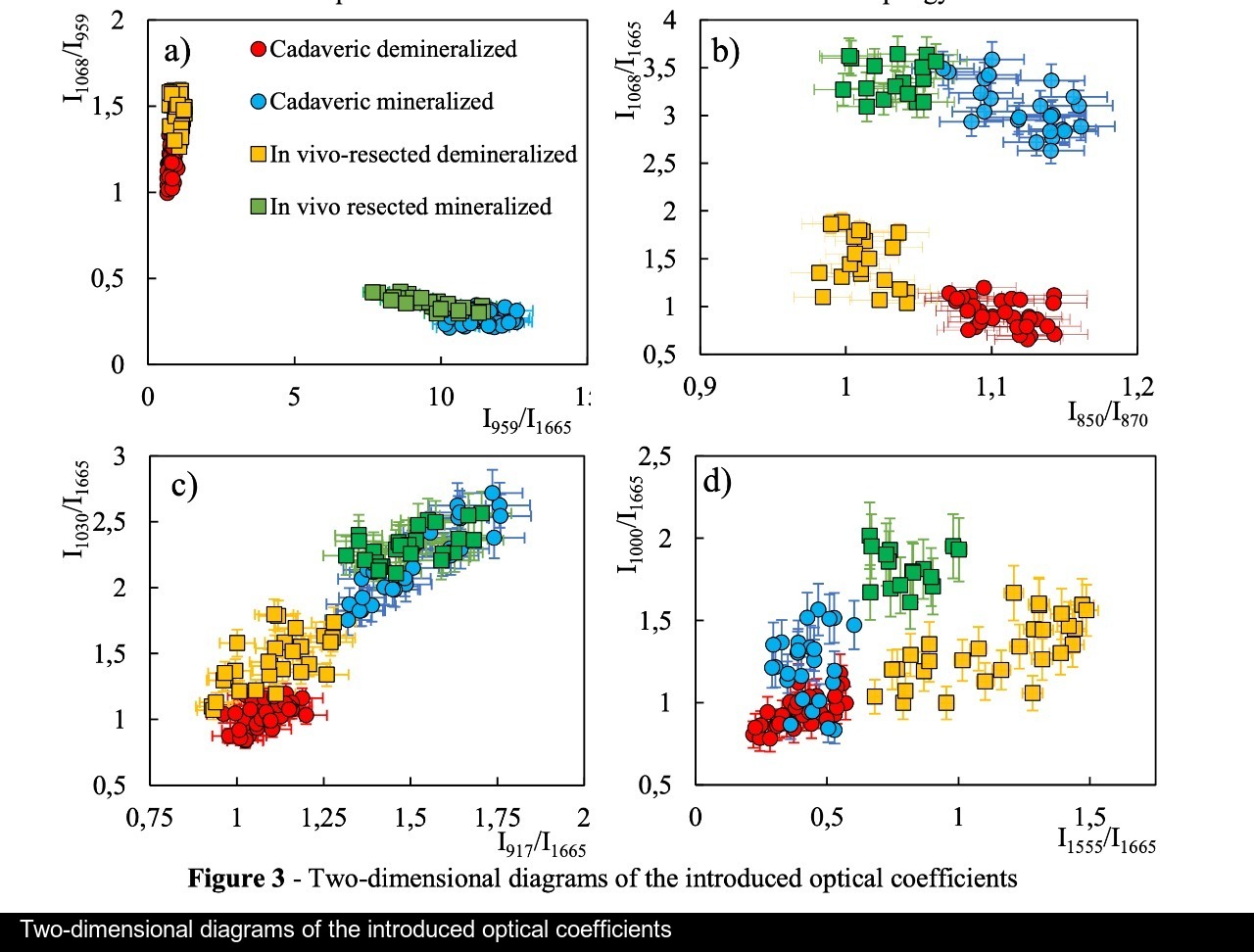

Two-dimensional diagrams of the introduced optical coefficients
